Home> Products > 5 Axis Head > LA-500 L type 5 axis head

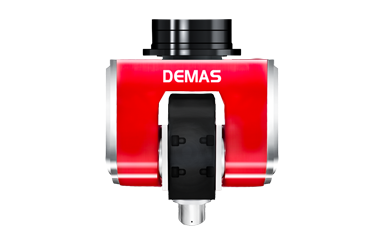

This spindle is an L-shaped design with compact structure and smooth and high-speed rotation. It is suitable for drilling, milling and cutting of light under medium loads.
The products are suitable for aerospace, ships, yachts, new energy vehicles, transformers, rail transportation, moulds, sanitary ware, bags and other industries. Milling, grooving, drilling, chamfering and engraving of aluminium profiles, carbon fibre, fibreglass, graphite, mother-of-pearl, oil sludge, foam, stone, PVC/ABS/PP/PE, rubber, polycyanide and other materials are available.
| Configuration | A-axis | C-axis |
| Servo motor | YASKAWA | YASKAWA |
| Reducer | RV | RV |
| Rated speed | 80°/sec | 90°/sec |
| Travel speed | 160°/sec | 175°/sec |
| Rated torque | 300nm | |
| Max. Instantaneous torque | 1000nm | |
| Max. Angle | ±110° | ±220° |
| Repositioning accuracy | ±20″ |
