Home> Products > CNC Router > 5 Axis > RJ-3040 PTP CNC ROUTER

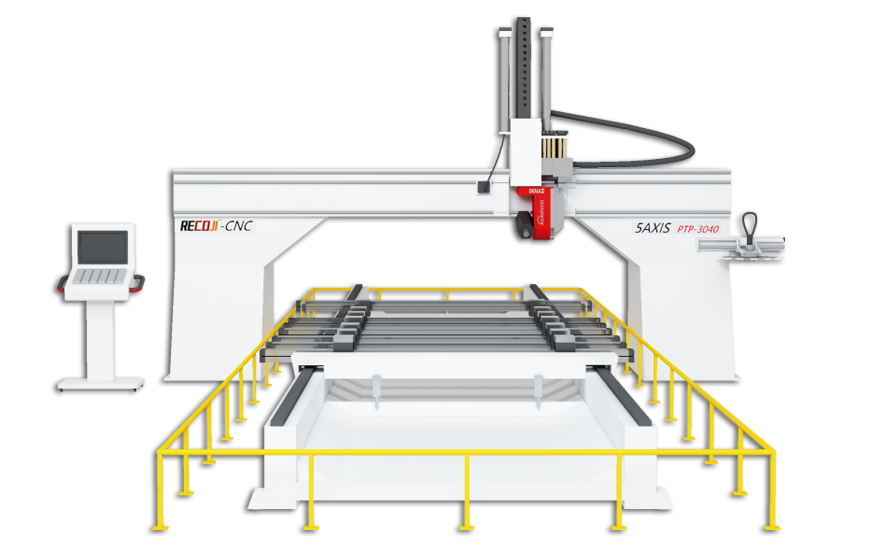

The PTP 5 axis CNC ROUTER adopt heavy duty machine structure, which is treated by annealing treatment twice. So machine's stability is improved greatly.
Can be applied to solid wood furniture, PVC/PP/PE, ABS, rubber, polyurethane, glass fiber, carbon fiber and other composite materials for grooving, chamfering, punching, hook grooves and other processes and multiple angles of high precision and high efficiency processing.
| Model | RJ-3040 |
| Working stroke （X、Y、Z） | 3000mm X 4000mm X 400mm |
| Structure | After sand blasting, stress relief annealing treatment, CNC gantry is milled by the machining center at one time |

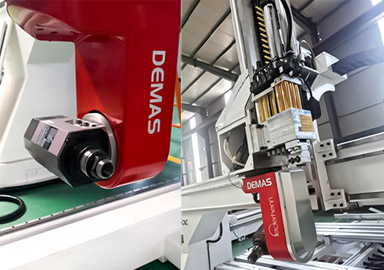

| Five-axis head | DEMAS five-axis head |
| Spindle | Italy HITECO |
| Spindle power | 10-12W |
| Boring unit | Italy boring unit 9V+4H |
| Tool magazine | 12 tools |
| Ball screw | TBL |
| Guide rail | Taiwan dust-proof mute high precise guide rail |
| Rack | Taiwan KH/German screw rack |
| Control system | Taiwan SYNTEC system with RTCP |
| Motor system | YASKAWA servo system |
| Working table | German SCHMALZ PTP working table |
| Lubrication | Auto lubrication system |
| Safe protection system | Overtravel protection/emergency stop protection/limit limit/air pressure alarm/electrical protection/leakage protection |
Specialising in CNC manufacturing for 15 years
Machine
lifetime over 10 years
Service response
time less than 1 hour
One-stop service including design, production, installation, training
Highest
cost-effective CNC solution
We have thorough CNC solutions for every industry, such as the industry of solid wood, chemical wood, plastic, ABS, PP/PE,GFRP, CFRP, ceramics, gypsum, stone, aluminum, nylon, etc.
Viewing the SolutionWe listed some common questions, you can find answers here quickly.
